Solid carbide drills, ø0.8-20.0 mm, up to 50×D
Carbide drills and solid round-tool drills from the UK — twist, micro, spot and deep-hole, Ø0.8–20.0 mm, up to 50×D.
Galtona's Solid Drills range (Round Tool Solutions) covers coated solid carbide drilling tools across Ø0.8 mm to Ø20.0 mm:
- High-performance twist drills (3xD–12xD, 135°–140° point angle) - HPC micro drills with cooling booster (5xD–30xD, down to Ø0.8 mm) - Deep hole drills up to 50xD - HPC twist drills across multiple tolerance classes and drilling depths - Spot drills (90°, 120°, and 142° point angles) - TLB deep hole drills
Available with internal coolant supply and multiple shank/tolerance options, for automotive, aerospace, medical, and general machine tool applications.

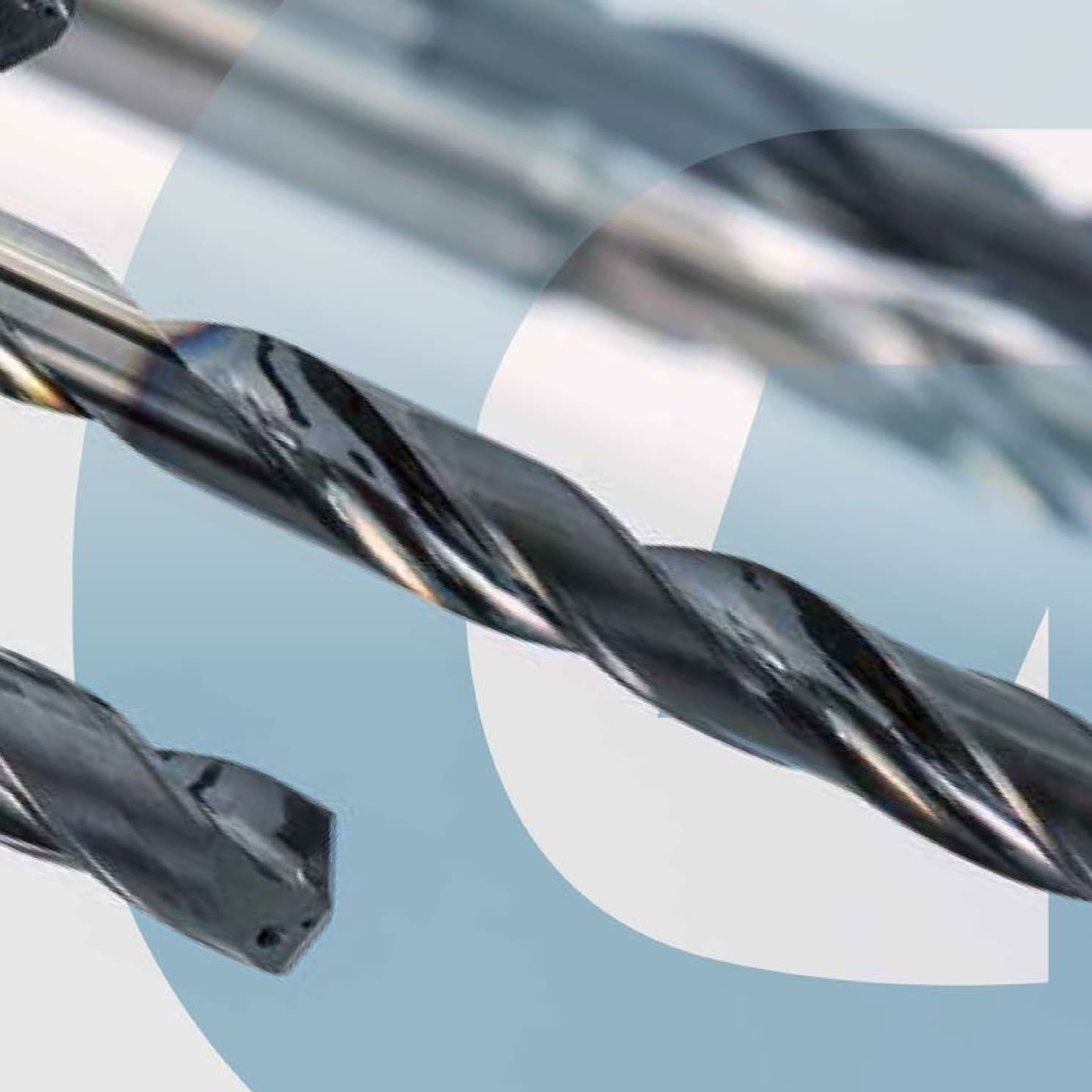

Coated solid carbide twist drills across the UN, ST, VA, AL, TI, and H material groups
Full Family Index
Every drill family in the Solid Drills catalogue — diameter range, tolerance, depth, point angle, and coolant.
Complete cross-reference of all tool families across the 6 material groups, transcribed from the catalogue's master overview.
Swipe to see more →
| Group | Family | Ø-range [mm] | Tolerance d₁ | Depth options | Point angle σ | Coolant | Description |
|---|---|---|---|---|---|---|---|
| UN | HL 0012 | 2.0–20.0 | h7 | ≤3xD, ≤5xD | 140° | opt. | High-performance twist drills, coated |
| UN | HL 0014 | 3.0–20.0 | h7 | ≤8xD, ≤12xD | 135° | yes | High-performance twist drills, coated (deep) |
| UN | HPC MB 0025 | 0.8–3.0 | m6 | ≤5xD | 135° | yes (booster) | HPC micro drills with cooling booster |
| UN | HPC MB 0026 | 0.8–3.0 | h6 | ≤8xD … ≤30xD (6 options) | 128° | yes (booster) | HPC micro drills with cooling booster |
| UN | TLB 1116/1120/1121/1125/1130/1140/1150 | 3.0–19.0 | h7 / j6 / fg6 | ≤16xD … ≤50xD (7 options) | 135°/140° | yes | Deep hole drills, coated |
| ST | HL | 3.0–20.0 | h7 | ≤5xD | 140° | yes | High-performance twist drills, coated |
| ST | HPC TF 0101–0112 | 2.0–20.0 | h7 / m6 | ≤3xD … ≤12xD (11 options) | 135°/140° | yes | HPC through-coolant twist drills, coated |
| ST | A | 2.0–20.0 | js8 | n/a (spot drill) | 90° / 120° / 142° | yes | Spot drills, coated |
| VA | HL | 3.0–20.0 | m7 | ≤3xD, ≤5xD | 135° | yes | High-performance twist drills, coated |
| AL | HPC | 3.0–20.0 | p6 | ≤3xD … ≤12xD (4 options) | 140° | yes | HPC twist drills, coated |
| AL | TLB (deep hole) | 3.0–20.0 | p6 | ≤16xD … ≤30xD (4 options) | 140° | yes | Deep hole drills, coated (pilot drill for matching 1216/1220/1225/1230) |
| TI | HL | 12.6–20.0 | m7 | ≤5xD | 140° | yes | High-performance twist drills, coated |
| H | HPC | 2.6–14.0 | h7 | ≤3xD | 140° | yes | HPC twist drills, coated |
